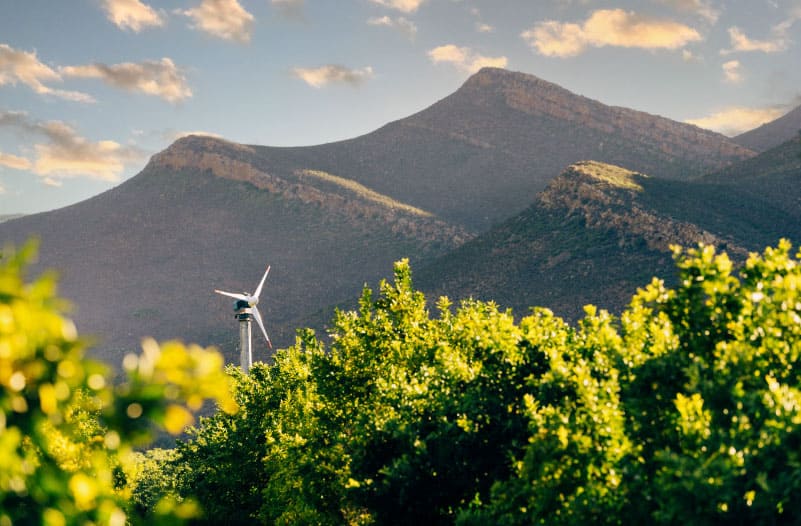

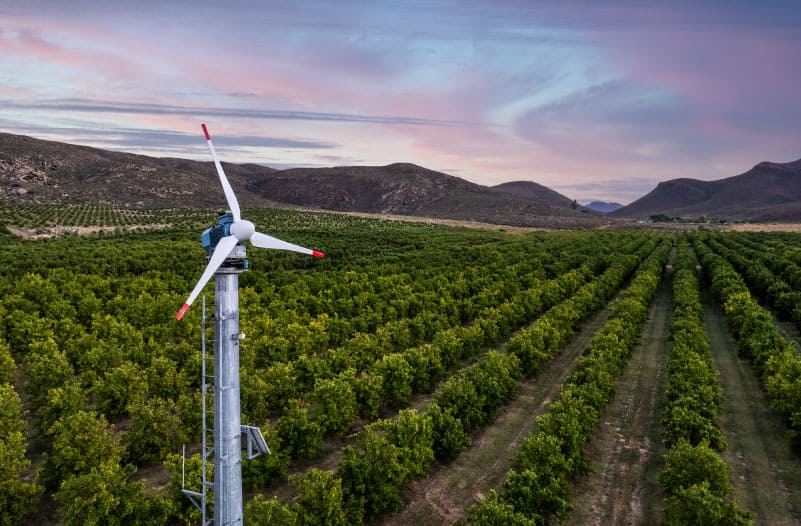

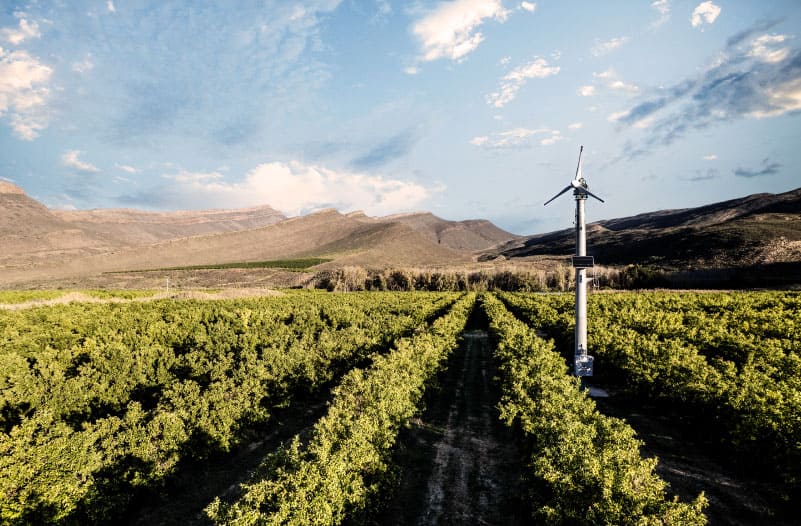

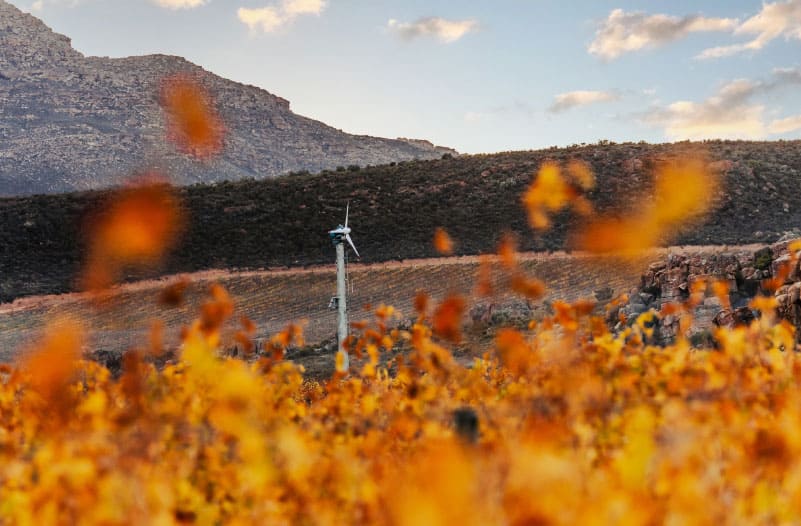

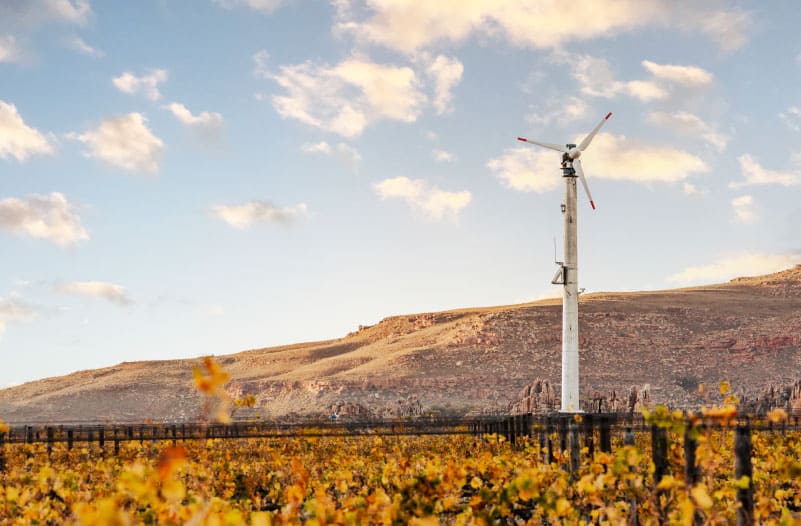

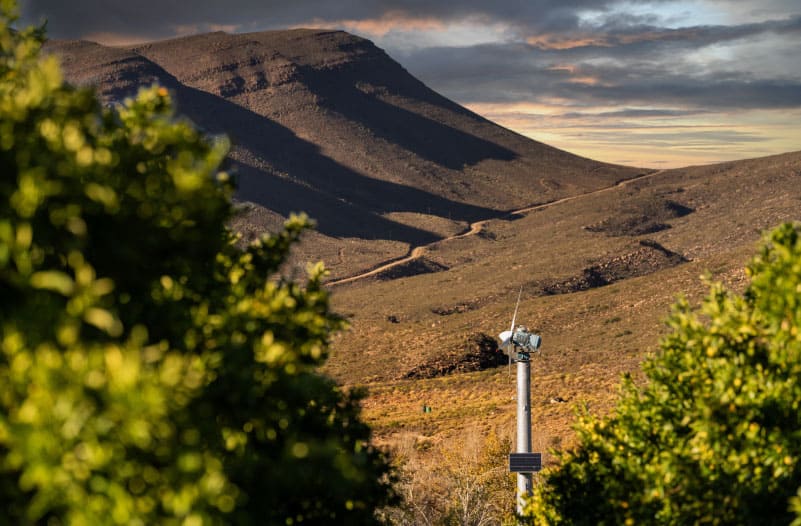

Stationary Electric Frost Fans
AGI’s stationary electric frost fans provide a cost-effective, sustainable way to protect crops while reducing operating costs. With up to 90% lower running costs than traditional systems, they deliver reliable performance across a wide range of crops and conditions.
Fully integrated with AGI LIVE, growers can monitor and control fan operation remotely in real time. Designed for easy installation and long-term efficiency, these fans can be deployed in new installations or retrofitted onto existing bases — enabling a smooth transition to cleaner, more efficient frost protection.
KEY FEATURES & BENEFITS
- Industry-leading coverage: Up to 9 ha (22 ac) per fan with advanced blade design
- Custom rotation control: Adjustable dwell times, angles, and programmable rotation cycles
- High mechanical efficiency: Direct-drive electric motor reduces noise and energy loss
- Cloud-based control: Real-time monitoring and control via AGI LIVE (web, Android, iOS)
- Simplified installation: Optional hydraulic pivoting tower for easier setup and servicing
- Durable construction: Hot-dip galvanised tower for long-term corrosion resistance
- Flexible power supply: Operates via 3-phase grid or generator
- Ultra-quiet operation: Advanced blade design ensures low noise levels; our E22- models offer the industry’s lowest operating noise
INDUSTRY-LEADING EFFICIENCY
- Coverage of up to 9 ha (22 ac) per fan
- 360° rotation with adjustable angles
- Customisable dwell times for targeted coverage
- Uniform wind distribution for maximum reach
- Direct-drive motor with low power consumption
LONG-TERM COST SAVINGS
- Operates at 10–20% of combustion fan costs
- Up to 90% lower running costs
- High-efficiency motors with excellent power transfer
- Fewer moving parts reduce maintenance requirements
- Lower costs enable longer runtime and improved crop protection
EASY INSTALLATION & MAINTENANCE
- Modular design for faster installation
- Hydraulic pivoting mast reduces need for cranes
- Pivot system simplifies servicing access
- Minimal annual servicing requirements
- Dynamically balanced components reduce vibration
SUPERIOR MATERIALS & DURABILITY
- Hot-dip galvanised tower for corrosion resistance
- Precision-engineered steel monopole construction
- Lightweight composite blades for efficiency
- Premium-grade electrical components
- Manufactured to ISO-quality standards
ENVIRONMENTALLY CONSIDERATE
- Low-noise electric motor operation
- Reduced energy consumption vs heating systems
- No water or chemical inputs required
- Lower emissions than fossil-fuel alternatives
- Suitable for integration with renewable energy sources
RELIABILITY & SAFETY
- Integrated braking system prevents idle rotation
- Blade-lock feature reduces wear when inactive
- Vibration monitoring for early fault detection
- Engineered for long service life
- Backed by comprehensive warranty coverage
CUSTOMISED CONTROL
ELECTRIC MOTOR POWER (kW):
Options include incremental rotation, partial rotation cycles, and fully programmable settings for precise coverage control.
Electrical Components:
Choose between premium performance components or cost-optimised configurations.
Tower Options:
Hydraulic pivoting towers for easier maintenance or fixed towers for cost efficiency, including retrofit compatibility.
Custom Rotation Control:
Options include incremental rotation, partial rotation cycles, and fully programmable settings for precise coverage control.
VARIOUS MODEL OPTIONS TAILORED TO YOUR NEEDS
| MODEL | POWER OUTPUT | LAYDOWN TOWER | TOWER THICK | ELEC COMP | FAN MOTOR | MOUNTING FLANGE | NOISE LEVEL (LAeq) | ROTATION SPEED |
|---|---|---|---|---|---|---|---|---|
| E301 | 30 kW / 40 hp | Yes | 8 mm, 5/16” | ABB | ABB | 8 hole round | 58 dB @ 300 m / 985 ft | 800 RPM (Direct Driven) |
| E302 | 30 kW / 40 hp | No | 6 mm, 1/4” | Various | Various | 4 hole square | 58 dB @ 300 m / 985 ft | 800RPM (Direct Driven) |
| E303 | 30 kW / 40 hp | No | 6 mm, 1/4” | ABB | ABB | 4 hole square | 58 dB @ 300 m / 985 ft | 800 RPM (Direct Driven) |
| E151 | 15 kW / 20 hp | Yes | 8 mm, 5/16” | ABB | ABB | 8 hole round | 54 dB @ 300 m / 985 ft | 800 RPM (Direct Driven) |
| E152 | 15 kW / 20 hp | No | 6 mm, 1/4” | Various | Various | 4 hole square | 54 dB @ 300 m / 985 ft | 800 RPM (Direct Driven) |
| E153 | 15 kW / 20 hp | No | 6 mm, 1/4” | ABB | ABB | 4 hole square | 54 dB @ 300 m / 985 ft | 800 RPM (Direct Driven) |
| E221 | 22 kW / 30 hp | Yes | 8 mm, 5/16” | ABB | SEW | 8 hole round | 40 dB @ 300 m / 985 ft | 400 RPM (Speed Reducer) |
| E222 | 22 kW / 30 hp | No | 6 mm, 1/4” | Various | Various | 4 hole square | 40 dB @ 300 m / 985 ft | 400 RPM (Speed Reducer) |
| E223 | 22 kW / 30 hp | No | 6 mm, 1/4” | ABB | SEW | 4 hole square | 40 dB @ 300 m / 985 ft | 400 RPM (Speed Reducer) |
| FAN SPECIFICATIONS | MODELS E30_ | MODELS E15_ | MODELS E22_ |
|---|---|---|---|
| Fan Diameter | 4 m / 13.1 ft | 4 m / 13.1 ft | 3 m / 9.84 ft |
| Shaft Power | 27 kW / 36 hp | 13.5 kW / 18 hp | 18.8 kW / 25.2 hp |
| Fan Rotational Speed | 800 RPM | 800 RPM | 400 RPM |
| Noise Level @ 300 m / 985 ft | 58 dB (LAeq) | 54 dB (LAeq) | 40 dB (LAeq) |
| Tested Coverage* | Up to 9 ha / 22 ac | Up to 6ha / 15ac | Up to 8ha / 20ac |
| Tested Coverage** | Up to 7 ha / 17 ac | Up to 4 ha / 10 ac | Up to 6 ha / 15 ac |
*Tested coverage: vineyards & similar crops | **Tested coverage: orchards & trees
Get guidance choosing the option that’s right for you ›
MANAGE EVERY ASPECT OF YOUR FAN WITH AGI LIVE
Get smart control with our custom-developed control & monitoring app
AGI LIVE is a cloud-based monitoring and control platform that gives growers full remote access to their frost protection systems.
Through an intuitive dashboard, users can monitor performance, adjust settings, and control fan operation in real time. Integrated environmental data — including temperature, humidity, and wind conditions — supports fast, informed decision-making when frost risk is highest.
TAILORED FROST & COLD RISK ASSESSMENTS
Precision placement for maximum efficiency
Every effective frost protection strategy starts with understanding your site conditions. AGI’s tailored assessments analyse key factors such as terrain, airflow, soil conditions, and historical data to identify high-risk areas and optimise fan placement.
Using advanced testing and data modelling, we deliver site-specific insights that ensure a precise, efficient, and cost-effective frost mitigation strategy.
ENQUIRE ABOUT OUR STATIONARY FROST FANS
Protect your crops with the industry’s most efficient frost prevention fan
AGI’s electric frost fans deliver reliable protection across diverse environments and temperatures. The open‑impeller design provides class‑leading coverage of up to 9 hectares (22 acres) per fan, while the electric drive ensures the lowest running costs in the industry — combining performance with unmatched efficiency.
